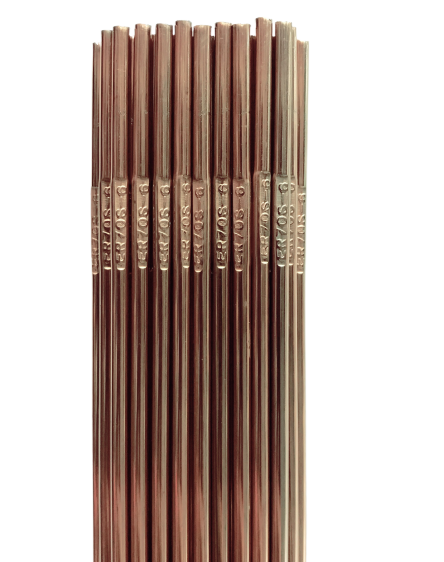

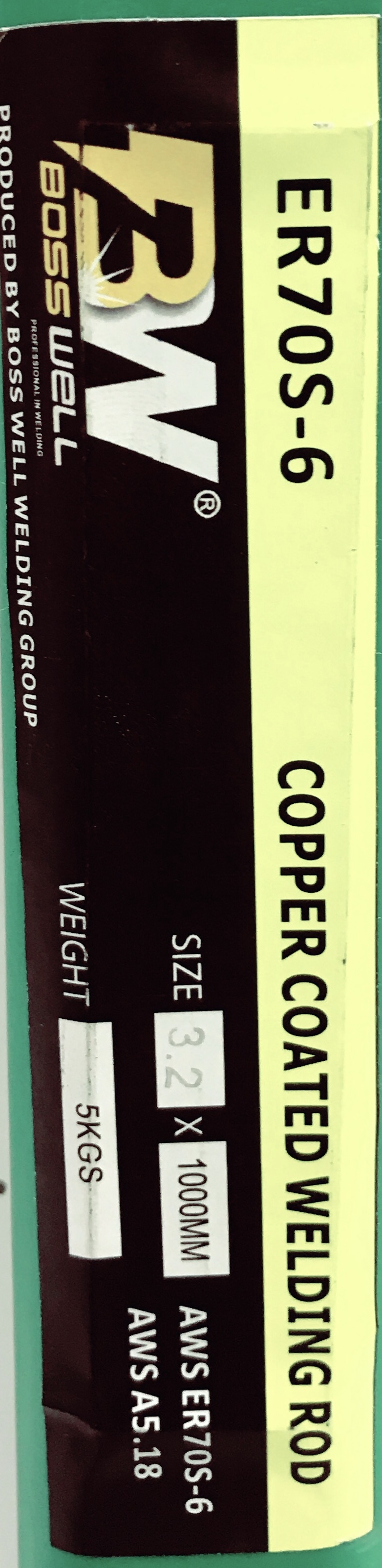

ER-70S-6 COPPER COATED TIG ROD

DESCRIPTION:

ER70S-6 is a premium mild steel solid wire formulated to provide high quality welds and trouble-free performance from heavy duty, high speed, spray transfer applications all the way to light duty low speed, short-arc applications. ER70S-6 is designed for use with various gas mixtures such as 100% CO2 ,75/25 Ar/CO2 or 98/2 Ar/O2. Even in the most difficult applications ER70S-6 produces a smooth stable arc with low spatter, producing a weld bead that ties in evenly with the sides and has a smooth finished appearance.

APPLICATIONS:

Frame fabrication, automotive structures, farm implements, construction equipment, pressure vessels, pipe fabrication, railcar construction and repair, general fabrication. Widely used in high-speed robotic and automatic welding applications and semi-automatic applications.

NOMINAL COMPOSITION:

Carbon          .06-.15 %           Copper       .50 % max.         Manganese     1.40-1.85 %

Silicon           .80-1.15%          Sulfur          .035 % max.       Phosphorus    .025 % max.

Nickel            0.15 % max.      Chromium   0.15 % max.       Vanadium       0.03% max.

Molybdenum 0.15 % max.      Iron             Balance               Others Total   .50 % max.
