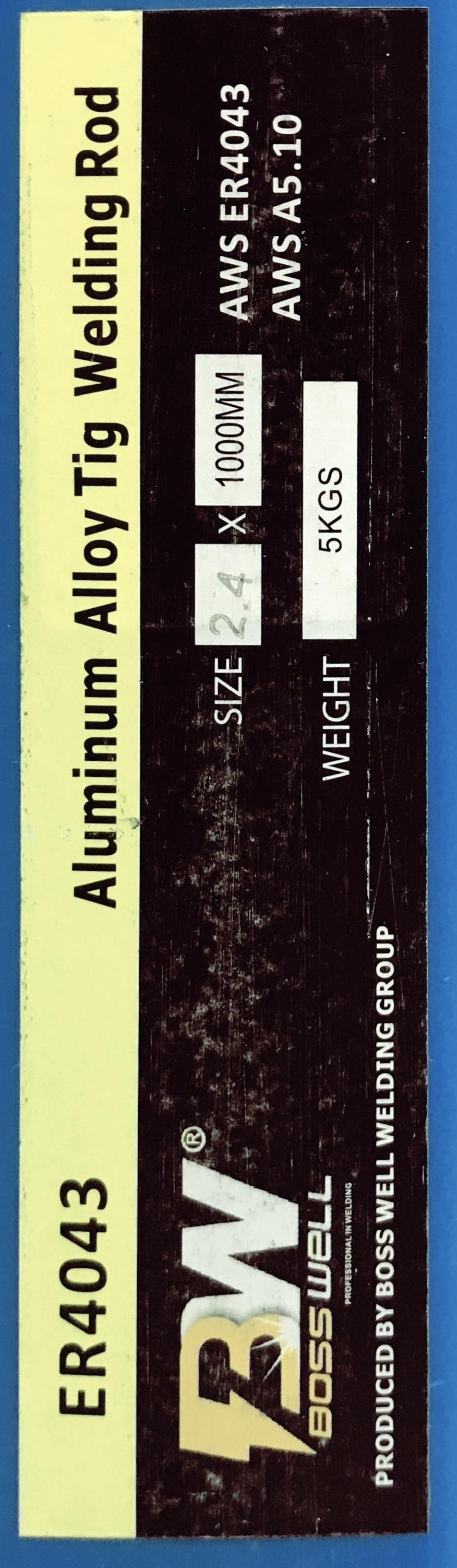

ER-4043 ALUMINIUM FILLER ROD

Category: TIG
Sub-Category: TIG CONSUMABLES
Brand: BOSS WELL

TYPICAL APPLICATIONS

  • Welding Filler Wire
  • Spray and Flame Metallizing Wire

GENERAL INFORMATION

  •   Trade Designation: Almigweld and Altigweld
  •  Non-Heat treatable
  •  Similar to AlSi5 (Germany), BS N21 (United Kingdom)
  •  EN ISO 18273 designation AlSi5
  •  Principle alloying element: Silicon
  •  Applicable specifications: ANSI/AWS A5.10 (ER & R), AMS 4190 (Chemistry Only)

CHEMISTRY

SILICON  IRON  COPPER  MANGANESE  MAGNESIUM  CHROMIUM  ZINC  TITANIUM  BERYLLIUM  EACH  TOTAL  ALUMINUM

4.5-6.0       0.8       0.30               0.05                  0.05                   ----         0.10       0.20           0.0003         0.05     0.15        REM
