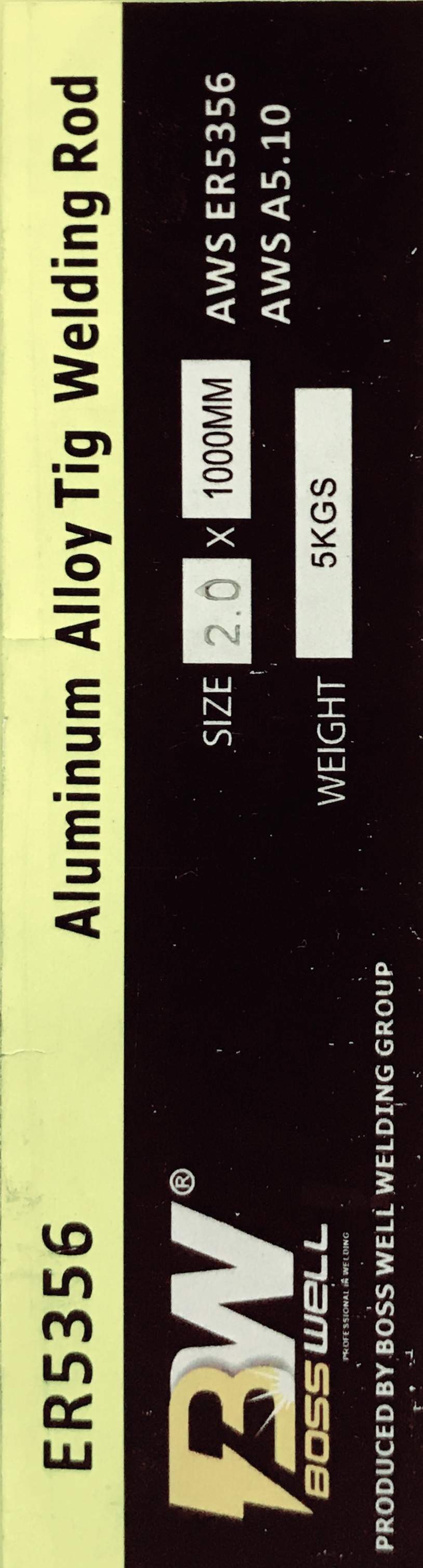

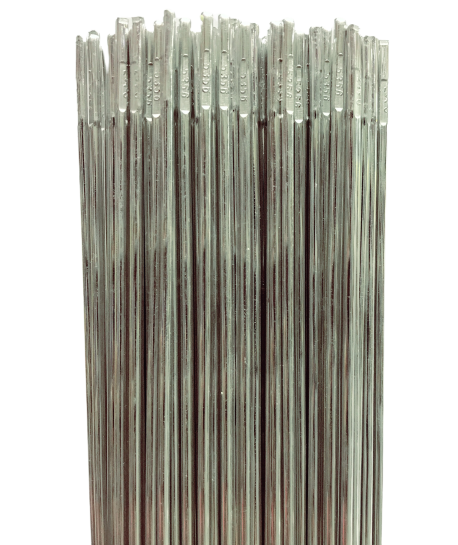

ER-5356 ALUMINIUM FILLER ROD

Category: TIG
Sub-Category: TIG CONSUMABLES
Brand: BOSS WELL

TYPICAL APPLICATIONS

  • Welding Filler Wire

GENERAL INFORMATION

  • Trade Designation: Almigweld and Altigweld
  •  Non-Heat treatable
  •  Similar to AlMg5 (DIN)
  •  EN ISO designation AlMg5Cr(A)
  •  Principle alloying elements: Magnesium, Manganese, Chromium, Titanium
  •  Moderate high strength capabilities
  •  Applicable specification: ANSI/AWS A5.10 (ER & R)

CHEMISTRY

SILICON  IRON  COPPER  MANGANESE  MAGNESIUM  CHROMIUM  ZINC  TITANIUM  BERYLLIUM  EACH  TOTAL  ALUMINUM

0.25          0.40          0 .10         0.05 -0.20          4.5 - 5.5         0.05- 0.20    0.10    0.06 -0.20    0.0003          0.05     0.15        REM
