CG1 RAIL CUTTING MACHINE

CG1 Semi-Automatic Gas Cutting Machine

Description:

The main body is made of aluminum of high strength by die-casting precisely.
Speed system is adjusted by controlled silicon.
Oxygen acetylene hose is made of high quality rubber with advance process.
Attached. Quick. Connector for hose quick link.
Quick switch is attached in pipe assembly for higher efficiency.
Mainly for straight line cutting and for circular cutting >
Single torches cutting, groove range: I. Y. V.

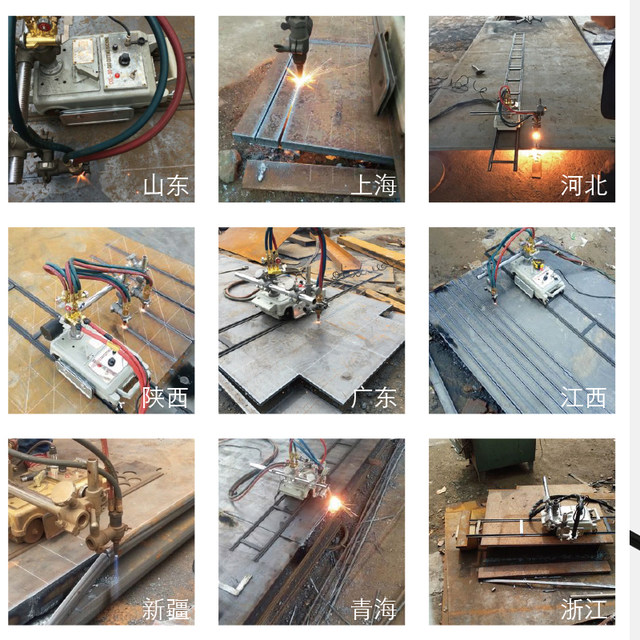

Applied in ship building, oil production metallurgy, metal structure and other manufacturers etc.

Technical Parameters

MODEL: CG1-30
OVERALL DIMENSION: 435× 210× 240MM
SUPPLY VOLTAGE: AC220/50Hz 110V/60Hz
CUTTING THICKNESS: 6-100MM
CUTTING SPEED: 50-750 MM/MIN
DIA. OF. CIRCLE CUTTING: 200-2000 MM
ROTAL WEIGHT: 16KG

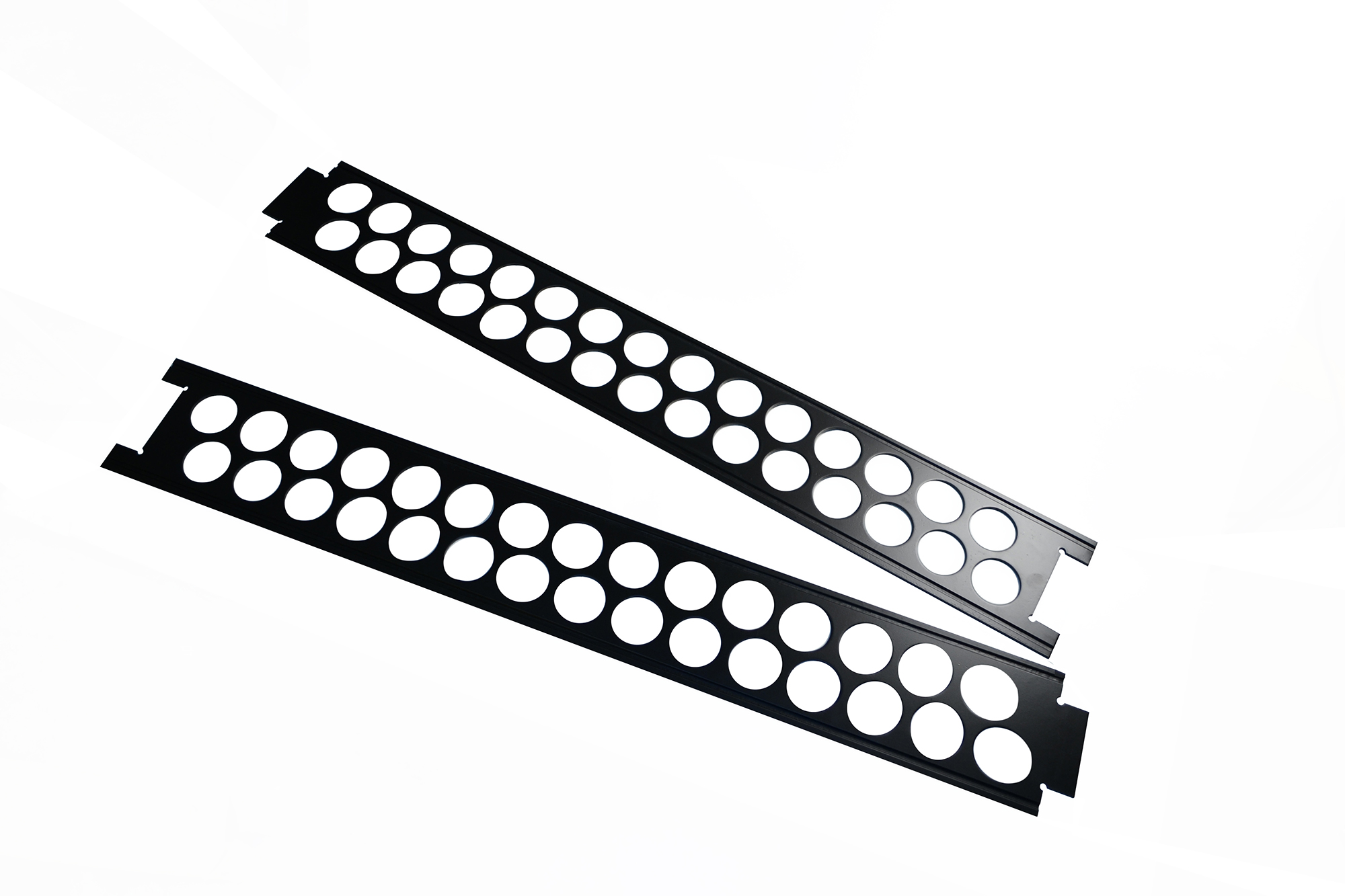

Steel Track: 1.8m or 1.2m*2
